Home page Product Center RF and Wireless RF Antennas

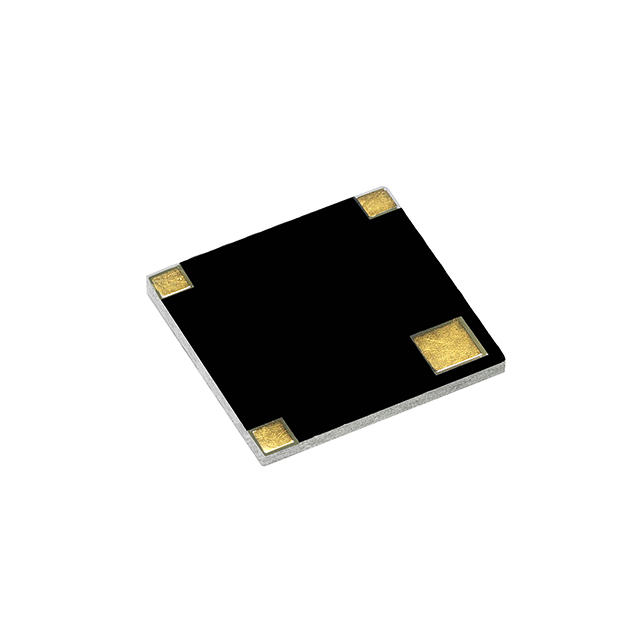

NN01-103
Part number
NN01-103
Product Category
RF Antennas
Manufacturer
Ignion
Description
GEOFIND - 103
Encapsulation
Tape & Reel (TR)
Packing
Quantity
1600
RoHS status
NO
Share
PDF：
Price inquiry
Inventory
Quantity
Send inquiry form
Quantity
Price
Total price
Obtain quotation information
Product parameters
Part Status
Obsolete
Features
-
Mounting Type
Surface Mount
Ingress Protection
-
Termination
Solder
Return Loss
-
VSWR
2
Antenna Type
Chip
RF Family/Standard
Navigation
Frequency Group
UHF (1GHz ~ 2GHz)
Height (Max)
0.035" (0.90mm)
Number of Bands
3
Frequency (Center/Band)
1.561GHz, 1.575GHz, 1.602GHz
Applications
Beidou, GLONASS, GPS
Frequency Range
1.598GHz ~ 1.606GHz
Gain
1.4dBi, 1.2dBi, 1.3dBi
