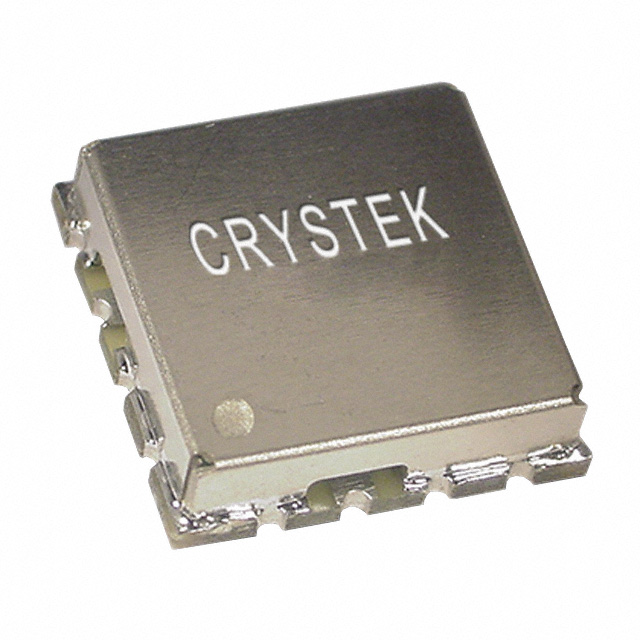

Part number：	CVCO55BE-1000-2000
Product classification：	VCOs (Voltage Controlled Oscillators)
Manufacturer：	Crystek Corporation
Description：	VCO 1500MHZ 1-20V 12.7X12.7MM
Encapsulation：
Packing：	Strip
Quantity：	5
RoHS status：	YES
Share

Part number：

CVCO55BE-1000-2000

Product classification：

VCOs (Voltage Controlled Oscillators)

Manufacturer：

Crystek Corporation

Description：

VCO 1500MHZ 1-20V 12.7X12.7MM

Encapsulation：

Packing：

Strip

Quantity：

RoHS status：

YES

Product parameters

PDF(1)

PDF(2)

PDF(3)

PDF(4)

TYPE	DESCRIPTION
Mfr	Crystek Corporation
Series	CVCO55
Package	Strip
Product Status	ACTIVE
Package / Case	16-QFN, Variant
Size / Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Operating Temperature	-40°C ~ 80°C
Voltage - Supply	10V
Height	0.150" (3.81mm)
Frequency Range	1000 ~ 2000MHz
2nd Harmonic, Typ (dBc)	-10
Frequency - Center	1500MHz
Icc Max	25mA
Pushing (MHz/V)	2.5
Phase Noise Typ (dBc/Hz)	-100
Power (dBm)	5.5 ±2.5
Tuning Voltage (VDC)	1 V ~ 20 V
