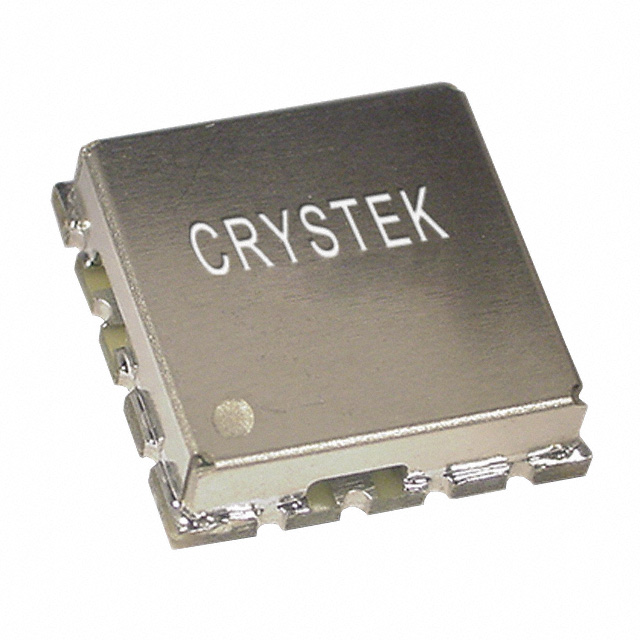

Part number：	CVCO55BE-2130-2220
Product classification：	VCOs (Voltage Controlled Oscillators)
Manufacturer：	Crystek Corporation
Description：	VCO 2175MHZ 0.5-4.5V 12.7X12.7MM
Encapsulation：
Packing：	Strip
Quantity：	0
RoHS status：	YES
Share

Part number：

CVCO55BE-2130-2220

Product classification：

VCOs (Voltage Controlled Oscillators)

Manufacturer：

Crystek Corporation

Description：

VCO 2175MHZ 0.5-4.5V 12.7X12.7MM

Encapsulation：

Packing：

Strip

Quantity：

RoHS status：

YES

Product parameters

PDF(1)

PDF(2)

PDF(3)

PDF(4)

TYPE	DESCRIPTION
Mfr	Crystek Corporation
Series	CVCO55
Package	Strip
Product Status	ACTIVE
Package / Case	16-QFN, Variant
Size / Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	5V
Height	0.150" (3.81mm)
Frequency Range	2130 ~ 2220MHz
2nd Harmonic, Typ (dBc)	-12
Frequency - Center	2175MHz
Icc Max	25mA
Pushing (MHz/V)	3
Phase Noise Typ (dBc/Hz)	-101
Power (dBm)	0 ±2
Tuning Voltage (VDC)	0.5 V ~ 4.5 V
