| TYPE | DESCRIPTION |
| Mfr | NXP Semiconductors |
| Series | - |
| Package | Tape & Box (TB) |
| Product Status | OBSOLETE |

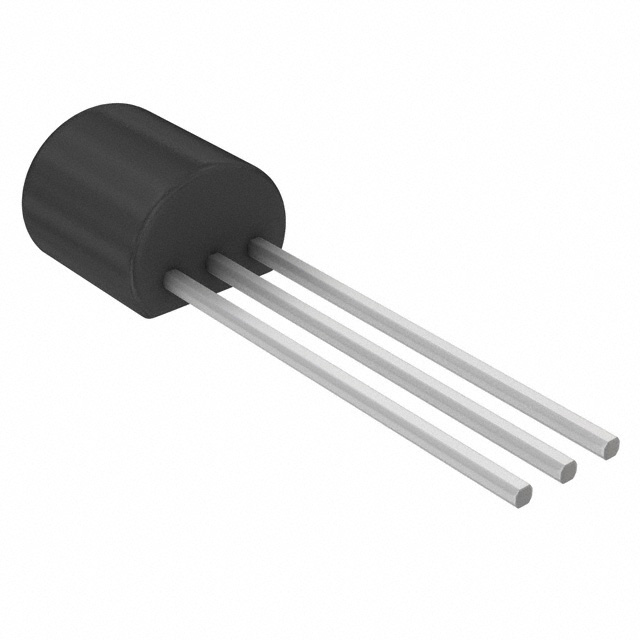

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Mounting Type | Through Hole |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 20mA, 5V |
| Supplier Device Package | TO-92-3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 500 mW |
| Resistor - Base (R1) | 2.2 kOhms |
| Resistor - Emitter Base (R2) | 2.2 kOhms |
