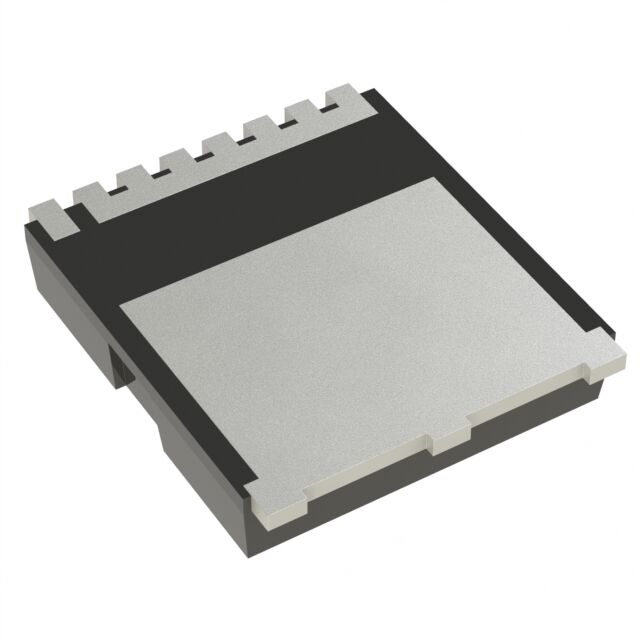

XP10NA1R5TL
Part number
XP10NA1R5TL
Product Category
Single FETs, MOSFETs
Manufacturer
YAGEO XSemi
Description
MOSFET N-CH 100V 300A TOLL
Encapsulation
Cut Tape (CT)
Packing
Quantity
2587
RoHS status
NO
Inventory
Quantity
Quantity
Price
Total price
1
$7.25
$7.25
10
$4.99
$49.9
100
$3.73
$373
Part Status
Active
Mounting Type
Surface Mount
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
100 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Vgs(th) (Max) @ Id
4V @ 250µA
Vgs (Max)
±20V
FET Feature
-
Operating Temperature
-55°C ~ 175°C (TJ)
Grade
-
Qualification
-
Rds On (Max) @ Id, Vgs
1.5mOhm @ 100A, 10V
Current - Continuous Drain (Id) @ 25°C
300A (Tc)
Package / Case
8-PowerSFN
Gate Charge (Qg) (Max) @ Vgs
304 nC @ 10 V
Supplier Device Package
TOLL
Input Capacitance (Ciss) (Max) @ Vds
16960 pF @ 80 V
Power Dissipation (Max)
3.75W (Ta), 333W (Tc)
